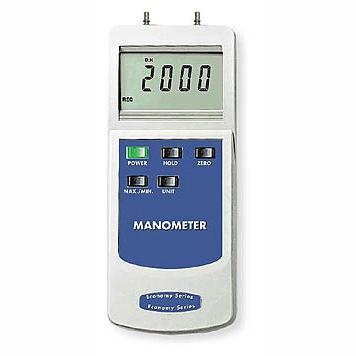

ML29124 Manometer
    · 고객선호도 :
    · 제조사 : DAVIS
    · 제품번호:ML29124
    · 판매가격 :
    · 포 인 트 :
    · 수 량 :


회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
배송은 평균 2~3일정도 예상됩니다.
                    (0)                     (0)                     (0)
TheML29124 Manometer dual or differential pressure measurements displayed in any one of eight units.
TheML29124 Manometer provides dual or differential pressure measurements displayed in any one of eight units. The ML29124 manometer is intended for measurements in air or non-corrosive and non-ionized gases and liquids.

Features
  • Dual & differential inputs
  • Measurements in air or non-corrosive and non-ionized gases & liquids
  • Integrated sensor
  • Single lug for pipe connection
  • Push button selectable display units: (mbar, psi, Kg/cm2, Thermometer mm Hg, inch Hg, meter H2O, inch H2O, Atmosphere)
  • Auto shut off
  • Front panel offset zero button
  • Large LCD display with contrast adjustment for best viewing angle
  • Records Maximum & Minimum readings, with Recall
  • Data Hold function for storing the displayed value
  • Built-in low battery indicator

SPECIFICATIONS
(23 °C ±5 °C)
Display  61 mm x 34 mm LCD display (2.4 x 1.3 inch)
15 mm (0.6) digit size
Display Units mbar, psi, Kg/cm2, mm Hg, inch Hg, meter H2O, inch H2O, ATM
Sampling Time Approx. 0.8 seconds
Maximum Measurement Ranges/Resolution/Accuracy
2000 mbar; 1 mbar  ±2% of full scale
29 psi; 0.02 psi  ±2% of full scale
2.040 Kg/cm2; 0.001 Kg/cm2  ±2% of full scale
1500 mm Hg; 1 mm Hg  ±2% of full scale
59.05 inch Hg; 0.05 inch Hg  ±2% of full scale
20.40 meter H2O; 0.01 meter HO ±2% of full scale
802 inch H2O; 0.5 inch H2O  ±2% of full scale
1.974 Atmosphere; 0.001 Atmosphere ±2% of full scale
Operating Temperature 0 to 50 °C (32 to 122 °F)
Operating Humidity Less than 80% R.H
Power Supply  006P DC 9V, MN1604/PP3 battery or equiv.
Alkaline or heavy duty type
Power Current Approx. DC 6.0 mA
Weight 345 g/12.1 oz.
Dimensions 180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inch)
 Notes: 1. Includes linearity, hysteresis, and repeatability.

CAT NO. MODEL DEscRIPTION AVAIL PRICE
ML29124   LPM-9100H   Manometer   Yes   645,840
ML29114   LCA-05A   OPTIONAL Carrying Case FOR Manometer   Yes   38,880
