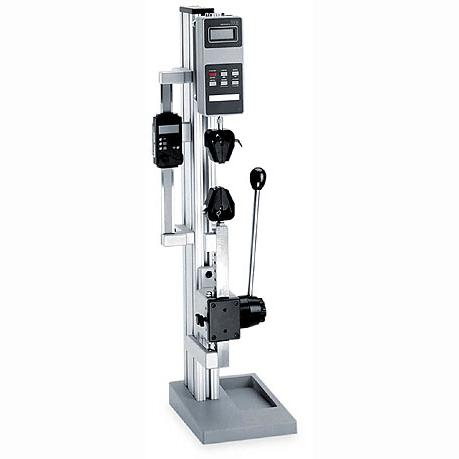

MK307 Test stand, lever operated, 750lb. Vertical |
|
|
|
 | |
Loading lever can be positioned in 30° increments for ease of operation,Adjustable travel stops |
Features |
- Small size
- Loading lever can be positioned in 30° increments for ease of operation
- Adjustable travel stops
- Adjustable wear plates for smooth, precise motion
- Mounting holes for bench mounting
- Frictional low force brake
- Precision ground rack and pinion mechanism
- Optional digital travel display
|
| | SPECIFICATIONS
Load capacity |
750 lb (3.3 kN) |
Maximum travel |
6", 2.75" with stops (152 mm, 69.85) |
Dimensions |
6"W x 8"D x 26"H (152 mm x 197 mm x 645 mm) |
Travel display |
Optional |
Loading method/rate |
Rack & pinion / 3" (76mm) per rev. |
Horizontal mount |
Optional |
Weight |
16 lb (7.26 kg) |
Included accessories |
Wrenches, hooks, thread adapter, compression plate, gauge hardware |
CAT NO |
 |
MODEL |
 |
DEscRIPTION |
 |
AVAIL |
 |
PRICE |
MK307 |
|
TSA |
|
Test stand, lever operated, 750lb. Vertical |
|
Yes |
|
1,998,000 |
MK308 |
|
TSAH |
|
Test stand, lever operated, 750lb. Horizontal |
|
Yes |
|
1,998,000 |
MK309 |
|
TSA001 |
|
Digital travel display |
|
Yes |
|
1,242,000 |
MK310 |
|
MK310 |
|
Horizontal wall mounting kit |
|
Yes |
|
378,000 |
| |
|
|
 | |
 |
|
 |
|
