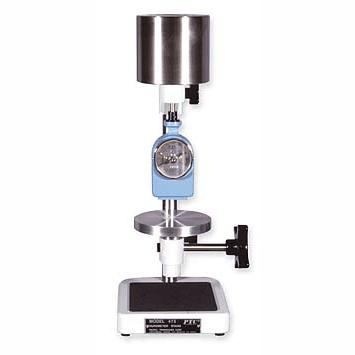

PZ472 Constaloader Test Stand
    · 고객선호도 :
    · 제조사 : DAVIS
    · 제품번호:PZ472
    · 판매가격 :
    · 포 인 트 :
    · 수 량 :

회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
배송은 평균 2~3일정도 예상됩니다.
                    (0)                     (0)                     (0)
The Deadweight stands use 400G, 1KG, or 5KG weights as recommended by ASTM D2240 specifications.
The Deadweight stands use 400G, 1KG, or 5KG weights as recommended by ASTM D2240 specifications. The load cell stand approximates both the 1K & 5Kg weights using calibrated springs.

ASTM D2240 states that better repeatability may be obtained by using mass centered on the axis of the indenter. Our stands are designed to give the user maximum repeatability.

The model 472 ConstaLoader™ features an oil-less airpot that gives a smooth, controlled descent for making the most accurate readings with an ASTM Type A, B, or O Durometer. It also has an adjustable table that can be locked in place for testing materials with nonparallel surfaces.

Features
  • Deadweight Stands
  • Load Cell Stand
  • ConstaLoader™ Controlled Descent Stand
  • Maximize Durometer Repeatability
  • Test materials up to 5" high, 3" high for ConstaLoader™

CAT NO. MODEL DEscRIPTION AVAIL PRICE
PZ472   472-1   CONSTALOADER TEST STAND (1 KG)TYPE A, B & O   Yes   3,013,200
PZ4722   472-2   CONSTALOADER TEST STAND (1 KG)TYPE A,B&O(PENCIL)   Yes   3,013,200
PZ473   473   DEADWEIGHT STAND (1 KG & 5 KG)TYPE A,B,C,D,DO&O   Yes   1,717,200
