The UE50 and UE75 will enable HVAC professionals to accurately test

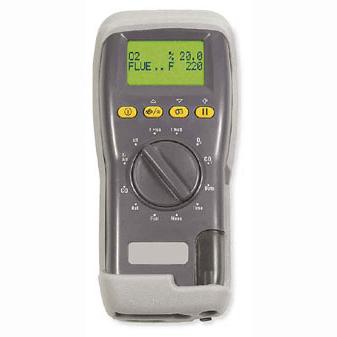

The UE50 and UE75 will enable HVAC professionals to accurately test and service all residential combustion appliances. The mutlimeter style rotary selector, allows the technician to easily choose combustion parameters allowing for quick measuring of flue temperature or oxygen and fast calculations of carbon dioxide, gross/net efficiency, or excess air. For technicians who are required to diagnose and repair heating equipment, the UE75 provides the added benefits of measuring Carbon Monoxide and calculating CO air free. Both analyzers have an extra large backlit LCD display that shows two parameters at one time. A protective ruggedize boot with an integral magnet allows for hands-free readings and provides the kind of durability expected.

Features

Easy multimeter style rotary selector
Measures flue temperature and oxygen
Calculates carbon dioxide, gross/net efficiency, and excess air
Reads pre-programmed fuels natural gas, light oil, propane, butane, & LPG
Infrared printer port allows for printing test results to an optional printer with date and time
Large back-lit LCD, 2 line display
Protected boot with an integral magnet
Three year limited warranty with two years on sensor

SPECIFICATIONS

Parameter	Resolution	Accuracy	Range
Flue Temperature	1°F/°C	±5°F (2°C) ±0.3% reading	32-1112°F (0-600°C)
Oxygen	0.1%	±0.2%*1	0-21%
Carbon Monoxide (UE75 Only)	1ppm	±10ppm<100ppm*1 ±5% of reading	0-2000ppm (4000ppm max for 15 mins.)
Carbon Dioxide*2	0.1%	±0.3% reading	0-30%
Efficiency*2	0.1%	±1.0 reading	0-99.9%
Excess Air*2	0.1%	±0.2%	0-250%
Pre-programmed Fuels Natural Gas, Light Oil, Propane, Butane, LPG
Weight	2.2lb (1kg)
Handset	8" (200mm) x 2" (45mm) x 3.5" (90mm)
Probe	L 12" (300mm) x Dia 0.25" (6mm) with 8" (200mm) long stainless steel shaft, type K thermocouple and 9ft (3m) long neoprene hose
Ambient Operating Range	32-104°F (0°C to 40°C) 10% to 90% RH non-condensing
Battery Life	Standard "AA" (x4) >8 hours continuous use
*1 Using dry gases at STP	*2 Calculated

CAT NO.

MODEL

DEscRIPTION

AVAIL

PRICE

UE50

C50

Combustion Analyzer

Yes

861,840

UE75

C75

Combustion Analyzer

Yes

1,079,978
