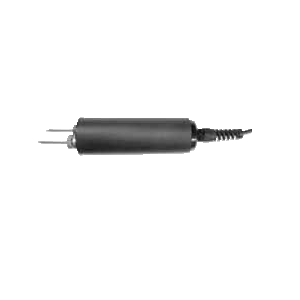

Moisture sensor for determination of the moisture content in wood.
FHA636MF Moisture
Sensor Type
● Moisture sensor for
determination of the moisture
content in wood.
● Indirect moisture
measurement according to the principle of
conductivity.
● Determination
of the moisture content in the material
through the dependence of the electrical resistance on the
moisture.
Types:
FHA636MF
Wood moisture probe
Technical Data:
Measuring method:
principle of conductivity
Measuring range:
7 to 30 % moisture in wood
Housing:
plastic handle
40mm Ø, 130mm long
Measuring tips:
stainless steel, uninsulated
3mm Ø, 50mm long
Weight:
260g
Accuracy:
± 2%
Reproducibility:
± 1%
Nominal temperature:
23°C ±2°C
Operating temperature:
0 to +60°C
Storage temperature:
-20 to +80°C
Signal output:
0 to 2V
Power supply:
7.5 to +12V
Current consumption
max. 10mA
