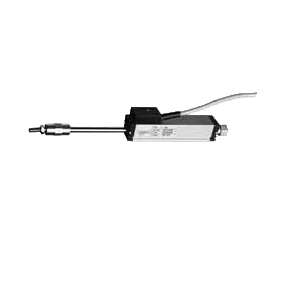

FWAxxxT Displacement Sensor, Potentiometric Type
    · 고객선호도 :
    · 시중가격 :
    · 판매가격 :
    · 포 인 트 :
    · 수 량 :


회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
배송은 평균 2~3일정도 예상됩니다.
                    (0)                     (0)                     (0)
Displacement transducers are suitable for direct,accurate measurement of displacements in automatic control and metrology
FWAxxxT
Displacement Sensor, Potentiometric Type

Displacement transducers are suitable for direct, accurate measurement of displacements in automatic control and metrology.
The pickup of the displacement is performed by using a pull rod with a universal joint. This allows for an actuation that is free from backlash and transverse forces, even in case of parallel and angular displacements of transducer and measuring direction.
Elastomer-damped, independently resilient multi-finger noble metal sliding contact for reliable contact, even at high adjustment speed, shock or vibration.
Long life span of 100 x 106 strokes, extraordinary linearity up to ±0.075%, pull rod running on two exact bearings, very high adjustment speed of up to 10m/s, shock and vibration
resistant.

Pre-adjusted in the factory by storing the correction
values in the ALMEMO® connector.
The precise adjustment can be locally performed by the
user with final measures after the installation.


Option:
OWA071AK Plug connection
(instead of fixed connected cable),
including 3m cable with screwed round socket and ALMEMO® connector
Technical Data:
Independent linearity: T25: ±0.2%; T50: ±0.15%
T75: ±0.1%; T100: ±0.075%
T150: ±0.075%
Housing length (meas. A+1mm): T25: 63mm; T50: 88mm
T75: 113mm; T100: 138mm
T150: 188mm
Mech. stroke (meas. B ±1.5mm): T25: 30mm; T50: 55mm
T75: 80mm; T100: 105mm
T150: 155mm
Total weight (with 2m cable): T25: 140g; T50: 160g
T75: 170g; T100: 190g
T150: 220g
Weight of the pull rod incl. coupling and sliding contact block:
T25: 35g; T50: 43g
T75: 52g; T100: 58g
T150: 74g
Movability, ball-shaped coupling ±1mm parallel displacement,
±2.5° angular displacement
Operating force (horizontal): ≤ 0.30N
Reproducibility: 0.002mm
Insulation resistance: ≥ 10MΩ
(500VDC, 1 bar, 2s)
Dielectric strength: ≤ 1mA
(50Hz, 2s, 1 bar, 500VAC)
Max. permissible torque: 140Ncm
Temperature range: -30 to +100°C
Temperature coefficient: typ. 5ppm/°C
Vibrations: 5 to 2000Hz/Amax =
0.75mm/amax = 20g
Shock: 50g/11ms
Life span: > 100 x 106 strokes
Protection system: IP 40

Types:
Working length/resolution, incl. ALMEMO® cable 2m long
FWA025T 25mm/0.001mm
FWA050T 50mm/0.01mm
FWA075T 75mm/0.01mm
FWA100T 100mm/0.01mm
FWA150T 150mm/0.01mm
on request up to 3000mm working length
