Professional data logger for humidity and temp.
with ext. probe socket
Sensitive products require the right ambient
conditions during production and storage. Efficient measurement and documentation
of the readings over months/years is possible with the testo 177-H1 professional
data logger.
Additional surface, immersion and air
probes can be attached to the data logger e.g. for uninterrupted measurement
of the
dew point distance.
● Long-term stable humidity sensor with fast
response time ● Control and adjustment option with
adjustment set ● Protective caps for dirt-ingressed
air or corrosive gases ● Convenient documentation with infrared
printer or PC/notebook

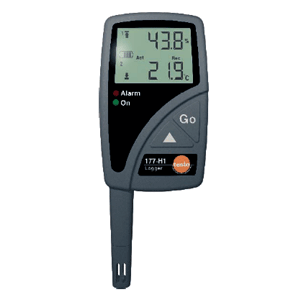

testo 177-H1
Intern. %RH, °C, °C td
+ extern. °C
testo 177-H1, humidity/temperature logger, 4 channels, with internal
sensors and additional external temperature probe socket, wall holder
and calibration protocol
Part no. 0563 1775 958,000
원
Efficient measurement of production and storage ambient conditions, to assure
stable quality
Collect data on-site with the testo 580 data collector, download and analyse
on PC/Notebook.
Suitable probes at a glance
Part
no.
0628
7510
84,000 원
0628
7503*
0610
1725*
0628
7514*
0628
7516*
0628
7507
127,000 원
0613
4611
168,000 원
0613
2211*
0613
2411*
0613
3211*
0613
1711*
◈The specified seal class of the
data loggers is achieved with these probes.
* Probe tested to EN 12830 for suitability in the transport and storage
sectors
Practical accessories and recommended sets
Wall holder, for quick attachment of logger to wall Included Lock for wall holder
Part no. 0554 1755 18,000
원
testo 575 fast printer, incl. 1 roll of thermal paper and batteries
Part no. 0554 1775 780,000
원
testo 177-H1, Standard Set
for logging ambient air conditions
testo 177-H1, humidity/temperature
logger, 4 channels, wall holder and calibration protocol
Lock for wall holder
testo 575 fast printer
ComSoft 3 - Basic Set for testo 177, Basic software incl. interface,
desk-top holder, PC connection cable
testo 580 data collector including readout holders
Part no. 0554 1778 430,000 원
ComSoft 3 - Basic Set for testo
177, Basic software
Part no. 0554 1774 166,000 원
testo 177-H1, Professional
Set for dew point difference measurement
testo 177-H1, humidity/temperature
logger, 4 channels, wall holder and calibration protocol
Lock for wall holder
Wall surface temperature probe
testo 575 fast printer
ComSoft 3 - Professional with data management
Interface incl. desk-top holder, PC connection cable
Ordering data
for Accessories
Part
no.
testo 575 fast printer, incl. 1 roll of thermal paper
and batteries
Infrared thermal line printer with graph function
0554 1775
780,000 원
Spare thermal paper for printer (6 rolls)
0554 0569
38,000 원
Spare thermal paper for printer (6 rolls)
Measurement data documentation legible for up to 10 years
0554 0568
43,000 원
Label thermal paper (Testo patent) for testo 575
printer (6 rolls), can be applied directly
0554 0561
72,000 원
testo 580 data collector including readout holders
for testo 175/177 data loggers
0554 1778
430,000 원
ComSoft 3 - Basic Set for testo 177, Basic software
With diagram and table function, interface incl. desk-top holder,
PC connection cable
0554
1774
166,000 원
ComSoft 3 - Professional with data management
Incl. database, analysis and graphics function, data analysis, trend
curve (without interface)
0554 0830
617,000 원
※ComSoft 3 - For requirements in accordance with
CFR 21 Part 11
Incl. database, analysis and graphics function, data analysis, trend
curve
0554 0821
2,805,000 원
Interface for testo 175/177 incl. desk-top holders,
PC connection cable(please also order for ComSoft 3 - Professional)
0554 1757
149,000 원
Lock for wall holder for testo 175/177 data loggers
0554 1755
18,000 원
Battery, 3.6 V/1.9 Ah 1AA
0515 0177
67,000 원
Transport case for up to 5 testo 177 data loggers,
testo 575 printer, testo 580 data collector and accessories
0516 1770
161,000 원
Metal protection cage, Ø 12 mm for humidity probes
For velocities of less than 10 m/s
0554 0755
77,000 원
Cap with wire mesh filter, Ø 12 mm
0554 0757
99,000 원
Teflon sintered filter, Ø 12 mm, for corrosive substances
High humidity range (long-term measurements), high velocities
0554 0756
79,000 원
Stainless steel sintered cap, Ø 12 mm, is screwed
onto humidity probe
For measurements at high velocity speeds or in dirt ingressed air
0554 0647
67,000 원
Control and humidity adjustment set 11.3%RH/75.3%RH
incl. adapter for humidity probes
0554 0660
487,000 원
ISO calibration certificate/Humidity Humidity data logger; calibration points 11.3%RH and 75.3%RH
at +25°C; per channel/instrument
0520 0076
268,000 원
DKD calibration certificate/Humidity Humidity data logger; cal. points 11.3%RH and 75.3%RH at
+25°C; per channel/instrument
0520 0246
689,000 원
ISO calibration certificate/Temperature Temperature data logger; calibration points -18°C; 0°C; +60°C
per chan./instr.
0520 0151
230,000 원
Technical data
Chann. intern
3
Meas. range
0... +100 %RH -20... +70 °C -40... +70 °C td
Accuracy
± 1 digit
±2 %RH (0... +100 %RH)
±0.5 °C (-20... +70 °C)
Resolution
0.1 %RH (0... +100 %RH) 0.1 °C (-20... +70
°C)
0.1% of mv (-40... +70 °C td)
Memory
48000
Oper. temp.
-20... +70 °C
Storage temp.
-40... +85 °C
Battery type
Lithium battery
Weight
130 g
Dimensions
103x64x33 mm
Warranty
2 years
Battery life: 5 years with a measuring
cycle of 15min (-10 to +50°C)
Measuring cycle: 2 s to 24h
Software: Microsoft Windows 95b / 98 /ME / NT4-Sp4 / 2000 /
XP
Chann. external (var.) 1
Meas. range
-40... +120 °C
Accuracy
± 1 digit
±0.2 °C (-25... +70 °C)
±0.4 °C (-40... -25.1 °C)
±0.4 °C (+70.1... +120 °C)
Resolution
0.1 °C (-40... +120 °C)
