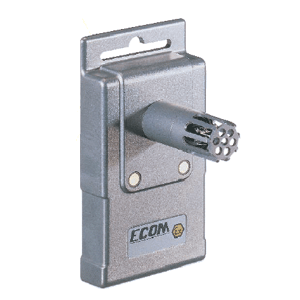

The Ex 171-3, in its extremely robust metal housing, guarantees a high measuring accuracy level |
Electronic thermohygrograph for Ex-zones
![](inst/testo/Humidity/img/Ex_171-3-3.gif)
Temperature monitoring in hazardous areas
![](inst/testo/Humidity/img/Ex_171-3-4.gif)
Data analysis on your PC via user-friendly Windows¢ç software. Table and
graphic analysis of data; all measurement and limit values at a glance |
The Ex 171-3, in its extremely robust metal
housing, guarantees a high measuring accuracy level for long-term measurements
in hazardous areas.
The interface to download the data to your PC is attached outside the hazard
area. The data is analysed in table or graph form via easy-to-use software.
¡Ü Tamper-proof readings
¡Ü Theft-proof mounting
¡Ü Control and adjustment option with
adjustment set
Ex 171-3 |
Ex 171-3, humidity data logger %RH, ¡ÆC, incl. starting magnet, battery
and calibration protocol
Part no. 0577 1733 2,157,000
¿ø |
|
![](inst/testo/Humidity/img/Ex_171-3-1.gif) |
Ordering data
for Accessories |
Part
no. |
Holder with lock for data logger
Theft-proof |
0554 1782
92,000 ¿ø |
ComSoft 3 - Professional with data management
Incl. database, analysis and graphics function, data analysis, trend
curve (not for Ex-zone) |
0554
0830
617,000 ¿ø |
Interface, attachable to data logger
Not for use in Ex-zone |
0554 1781
112,000 ¿ø |
Control and humidity adjustment set 11.3%RH/75.3%RH
incl. adapter for humidity probes (not for use in Ex-zone) |
0554 0660
487,000 ¿ø |
Stainless steel sintered cap, ¨ª 21 mm, can be screwed
onto humidity probe
Protection in case of high mechanical load and high velocities |
0554 0640
77,000 ¿ø |
Transport case (plastic) for data loggers and accessories
Not for use in Ex-zone |
0516 0117
316,000 ¿ø |
ISO calibration certificate/Humidity
Humidity data logger; calibration points 11.3%RH and 75.3%RH
at +25¡ÆC; per channel/instrument |
0520 0076
268,000 ¿ø |
DKD calibration certificate/Humidity
Humidity data logger; cal. points 11.3%RH and 75.3%RH at
+25¡ÆC; per channel/instrument |
0520 0246
689,000 ¿ø |
ISO calibration certificate/Temperature
Temperature data logger; calibration points -18¡ÆC; 0¡ÆC; +60¡ÆC
per chan./instr. |
0520 0151
230,000 ¿ø |
ISO calibration certificate/Temperature
Temperature data logger; calibration points -8¡ÆC; 0¡ÆC; +40¡ÆC
per channel/instrument |
0520 0171
230,000 ¿ø |
DKD calibration certificate/Temperature
Temperature data logger; cal. points -20¡ÆC; 0¡ÆC; +60¡ÆC; per
chan./instr. |
0520 0261
740,000 ¿ø |
|
Recommended kit: |
Ex 171-3,
The Set in the Case
|
Ex 171-3,
humidity data logger %RH, ¡ÆC, incl. starting magnet, battery and calibration
protocol
ComSoft 3 - Professional with data management
Interface, attachable to data logger
Transport case (plastic) for data loggers (max. 5 off) and accessories |
Technical data |
Probe type |
Testo humid. sensor, cap. |
NTC |
Meas. range |
0... +100 %RH |
-10... +50 ¡ÆC |
Accuracy
¡¾ 1 digit |
¡¾2 %RH (+2... +98 %RH) |
¡¾0.4 ¡ÆC (-10... +50 ¡ÆC) |
Resolution |
0.1 %RH (0... +100 %RH) |
0.1 ¡ÆC (-10... +50 ¡ÆC) |
Memory |
20000
|
Battery life: Lithium battery up to 5 years |
Material
/Housing |
Aluminium, anodized |
Software: Menu-driven from DOS version 3.1
and |
Oper. temp. |
-20... +70 ¡ÆC |
Windows version 3.0 |
Storage temp. |
-40... +85 ¡ÆC |
|
Battery type |
Lithium battery |
|
Dimensions |
131x72x68 mm |
|
Weight |
320 g |
|
Warranty |
2 years |
|
|
|
| |
|
|
