J004-051 DOUBLE DIAPHRAGM 1/4¡± PUMP
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
It has a maximum weight of 4.1 lbs with a maximum discharge pressure of 100 PSI.

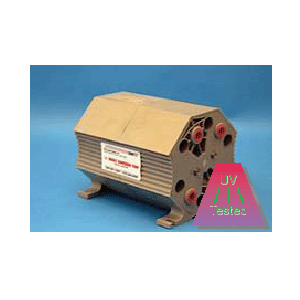

DOUBLE DIAPHRAGM 1/4¡± PUMP

The CON-TROL-CURE¢ç Double Diaphragm 1/4" Polypropylene Pump is the most recent addition to the line of CON-TROL-CURE¢ç pumps guaranteed to work with UV inks and coatings. The Double Diaphragm 1/4" Pump transports 4.6 GPM with 20+ ft suction from bucket to ink delivery tray, making it ideal for extended, continual use. It has a maximum weight of 4.1 lbs with a maximum discharge pressure of 100 PSI. The single inlet/outlet polypropylene pump is constructed with stainless steel hardware. With a 1/4" piping capacity, it can be plumbed in any of 4 fluid inlet/outlet configurations. Mounts in any position: upside down, sideways, right-side-up, 360¡Æ on all 3 axes - all without affecting performance. The CON-TROL-CURE¢ç Double Diaphragm 1/4" Pump has an air motor design that cannot stall and will start up or shut off after any interval or length of time.

1/4" Pump Rebuild Kit. This kit contains parts and instructions necessary for the replacement of most components of the CON-TROLCURE¢ç Double Diaphragm 1/4" Pump. The kit includes diaphragm, back-up ring, seal, disc, spring stop, spool assembly, U-cup, and Orings in a variety of sizes. 1/4" Pump Air Valve Kit also available.

Part Number Description Units
J004-051 DOUBLE DIAPHRAGM PUMP 1/4" EACH
J004-060 1/4" PUMP REBUILD KIT EACH
