1/2" NPT threaded connections, Full flow, 90¡Æ rotation from off to full flow

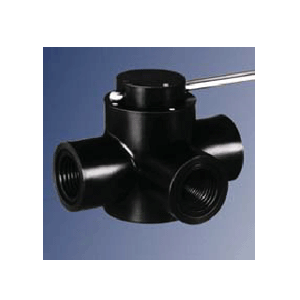

POLYPROPYLENE ELLIPTIC HAND VALVES

The unique design of the Elliptic Hand Valves offers unmatched suitability for a broad range of applications in fluid handling systems, especially where a high degree of resistance to corrosion and contamination is required.

FEATURES:
¡Ü 1/2" NPT threaded connections
¡Ü Full flow
¡Ü 90¡Æ rotation from off to full flow

¡Ü Dynamic sealing effect
¡Ü In-line servicing and cleaning
¡Ü Pressure rating: 80 PSI @ 73¡ÆF water
¡Ü Compact and lightweight
¡Ü Individually tested

The versatile 4 position/3-Way Elliptic Valve may be used as:
1. 1 inlet to either of 2 outlet
2. 1 inlet to both (2) outlets
3. Either of 2 inlets to 1 outlet
4. Both (2) inlets to 1 outlet

Part Number Description Units
J004-037 VALVE 2-WAY EACH
J004-038 VALVE 3-WAY, 2 POSITION EACH
J004-039 VALVE 3-WAY, 4 POSITION EACH
