J004-052 SURGE SUPPRESSORS
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
Double Diaphragm Pumps offer many benefits over most other types of reciprocating pumps.

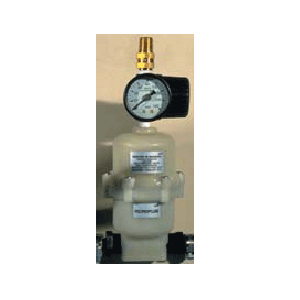

SURGE SUPPRESSORS

Double Diaphragm Pumps offer many benefits over most other types of reciprocating
pumps. They do, however, present the drawback of pulsation. For a steady stream, the CON-TROL-CURE¢ç Surge Suppressor acts as a shock absorber to cushion the effects of pulsating flow. Basically constructed as closed chambers, each model contains an elastomer bladder inside. The bladder separates a compressed air cushion on the top from the pumped liquid on the bottom. To control surges from delivery discharges, the Surge Suppressor should be installed at the pump's discharge connection. The closer to the pump discharge, the better the dampening effect. 2 models available: for 1/2" or 1/4" flexible air hoses.

Part Number Description Units
J004-052 SURGE SUPPRESSOR 1/2" EACH
J004-053 SURGE SUPPRESSOR 1/4" EACH
