M015-014 HANDHELD MULTISCOPE¢â
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)

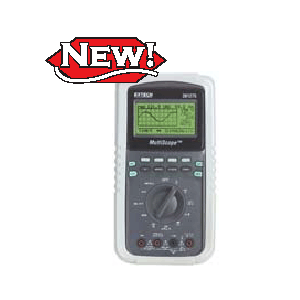

The Handheld MultiScope¢â is a graphical storage oscilloscope
HANDHELD MULTISCOPE¢â

The Handheld MultiScope¢â is a graphical storage oscilloscope and true RMS DMM that that includes an RS-232 interface and PC software. It features oscilloscope graphical functions: single channel, volts/division (150mV-400V), amps/division (15A), 500ns glitch capture, and pre/post-trigger (- 4div/+10div). The oscilloscope bandwidth is DC to 100kHz with a sample rate of 1,000,000 samples/second. The multimeter functions include AC/DC voltage/current, resistance, capacitance, frequency, dB, duty cycle, pulse width, period, TTL level generator, and diode and continuity tests.

FEATURES/SPECIFICATIONS:
¡Ü Oscilloscope Display: 128 x 64 pixel graphic LCD (View area: 2.8" x 1.5")
¡Ü MultiMeter Display: 3-3/4 digit (4000 count) LCD with bargraph and data hold
¡Ü Record and recall minimum/maximum/average readings with time stamping
¡Ü Generator output provides 10Hz to 20kHz TTL level output
¡Ü Store and recall 15 waveforms plus setup
¡Ü Graphical "help" screens explain functions
¡Ü Over-range indication and auto power off
¡Ü Optional inductive pick-up adaptor for automotive rpm measurements to 12,000 rpm (distributor type engines)
¡Ü Optional rechargeable NiCad battery pack and AC adaptor/recharger recommended
¡Ü Complete with protective holster, built-in stand, RS-232 cable, 6 "AA" batteries, fuses, test leads and alligator clips

Part Number Description Units
M015-014 HANDHELD MULTISCOPE¢â EACH
M015-015 HANDHELD MULTISCOPE¢â WITH NIST EACH
M015-019 TEMPERATURE ADAPTOR EACH
M015-018 AUTOMOTIVE PICK-UP EACH
M015-016 NICAD 117 CHARGER EACH
M015-017 NICAD 220 CHARGER EACH
