| The PowerArc UV100 is the perfect unit for rapid, controlled UV curing. |
 |

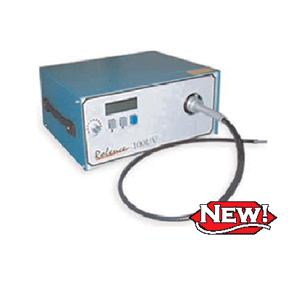

POWERARC UV100
The PowerArc UV100 is the perfect unit for rapid, controlled UV curing.
This low cost, yet powerful unit minimizes IR and maximizes UV output for
quick curing and low risk of component overheating. It can be used in manual
applications or mounted for automated processes. The adjustable lamp intensity
peaks at a powerful 7W/cm² at 365nm.
FEATURES:
● Compact, reliable, and easy movement
● Easy operation - precision control
● Durable construction
● Low maintenance, long lamp life results in minimal
downtime, higher throughput.
● Time saver (rapid cure)
● Money saver (cost efficiency)
● Fast and easy lamp replacement
● Microprocessor control with LCD display allows for
flexible programming
● Working hours UV lamp counter |
|
SPECIFICATIONS:
| ● Lamp: |
100W mercury short arc lamp |
| ● Lamp Life: |
1000 hours warranteed |
| ● Peak Intensity: |
7W/cm² @365nm (peak) |
| ● Output: |
10W/cm² (250-500nm) |
| ● Light delivery: |
Single 5 mm x 1 m toxic-free liquid light guide |
| ● Warm Up: |
2 minutes |
| ● Dimentions: |
16 cmH x 33 cmW x 27 cmD |
| ● Weight: |
20.9 lbs (9.5 kg) |
| ● Power Supply: |
110 and 230V, 50/60Hz system with auto voltage
change function |
| ● OPTIONS: |
Single or dual 5 mm/3 mm liquid light guides |
| Part Number |
Description |
Units |
| A121-032 |
POWERARC UV100 |
EACH |
|
| |
|
|
 | |
 |
|
 |
|
