MODEL AM-III, Paper Moisture Meter

Immediate PAPER and Paperboard MOISTURES Are As Near As Your Fingertips

Aqua Measure Instrument Company proudly presents the Model AM-III portable moisture measuring instrument. State-of-the art microprocessor-based instrument permits instantaneous nondestructive moisture measurement on all types of paper and paperboard. OPTIONS Extended Warranty DSU, Data Storage Unit 230 VAC Charger Recorder Output Circuitry

Direct Digital Reading % Moisture

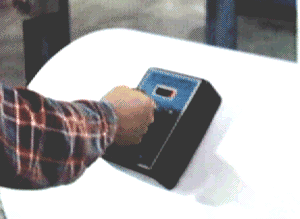

Immediate, accurate moisture readings are obtained on moving or stationary rolls, stacks, or reams. The paper industry has long recognized the need for rapid on-line moisture measurement to assure efficient energy usage and a high yield of good quality paper. Many years of experience in the measuring of paper moistures have qualified Aqua Measure's engineers to build a rugged, portable instrument which truly excels in measurement accuracy. OUTSTANDING FEATURES Field selection of up to sixteen (16) Calibration Curves. Measures 0-15% moisture range. Heavy gauge stainless steel rollers. Double sealed precision bearings. 2.3 mm (0.90") drawn aluminum enclosure. Recessed digital LED display calibrated directly in percent moisture. Internal electrical standard assures calibration accuracy. Lead Acid Gel rechargeable battery. Fully automatic battery charger included. Calibration programmed in microcomputer. One year warranty covering parts & labor (extended TWO YEAR warranty available). Certified by F.C.C. Complete with Charger, Rugged Carrying Case and detailed Instructions.

PRINCIPLE OF OPERATION The measurement technique employed in the AM-III involves an electronic determination of a basic physical characteristic of the paper, the dielectric constant. This physical property changes with paper moisture, therefore, a calibration can be defined which relates the measured dielectric constant to moisture content. The character of the dielectric response also changes with frequency, hence it is possible to select a frequency and operating mode which minimizes the influence of other variables in the paper such as pH and temperature. The AM-III employs this principle to achieve a calibration which can be used with good accuracy for all types of paper.

Precision roller sensing elements and state-of-the-art circuitry

To assure highest measurement accuracy, eight readings of moisture content are taken in the machine direction, and the average is displayed as one moisture reading. A new average is taken every 1/2 second, providing an easily read display rate.

Meter, Case, Charger and Manual.

5.1 cm (2") RF Field Penetration Assures Measurement Accuracy

AM-III OPTIONAL DATA STORAGE UNIT

New Data logging using RS-232 serial interface and software.

• Works with your computer to control and track moisture levels.
• Stores 2,000 moisture readings - 30 minutes worth of testing.
• No extra equipment to carry - the DSU is installed within the AM-III.
• No computer experience needed - custom "point and click" software included with purchase.

The Data Storage Unit (DSU) is an exciting new option for the AM-III Portable Moisture Analyzer for paper. The DSU installs directly into the AM-III and incorporates a real-time clock, non-volatile memory and an RS-232 Input/Output link to a computer.

When the AM-III is turned on, the DSU records the date, time and Calibration Curve Switch Position in use. Moisture readings are then recorded at a rate of one per second. The moisture data is then downloaded to a computer and into a program that saves the measurements as files. The custom software then displays the files as graphs. The files can be printed, or imported into spreadsheet programs for further processing.

This is a powerful new tool for statistical quality control data. The AM-III DSU allows a mill or converter to take measurements anywhere, on moving or stationary rolls, stacks or reams, and save the moisture data for reference.

AM-III Shipping Weight 12 lbs.

제지용 Digital Roller 수분계   AM-III

● 사용특징

샘플의 표준 Factor를 미리 알아서 (Calibration) 제지 종류에 따라 측정시 Factor

● 용도 : 회전중의 제지 수분측정 등 //값을 설정하여 측정해야 한다.

측정범위 : 0 to 15%

Sample 측정 두께 및 표시치 : 5.1cm 두께의 수분 평균치 표시

측정원리 : RF Field

Heavy gague stainless steel Roller 센서구조,Double sealed precision Bearings

LED Display in digital moisture Percentage 수분 직접 표시

충전식 전원공급 - Incl. Battery Charger AC110V

Auto Air Zero 환경 조건 자동보정

Calibration available for special Papers option 기본

Calibraton programmed in Microcomputer unit SOFTWARE 기본
