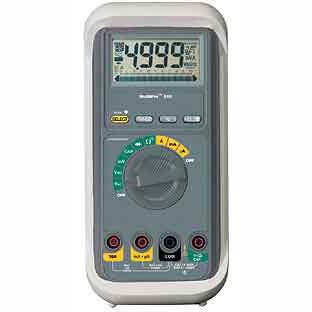

The Professional Series of multimeters are designed to provide the user a professional meter that will withstand the rigors of heavy duty use. Performance, including accuracy and resolution, is unsurpassed by any 5000 count meter in this price range. All models offer features such as wide AC bandwidth (20kHz) and PC interface. Selected models offer True RMS detection, 5ms Peak Hold and wide temperature measurements.
Features
Wide Bandwidth — 40Hz to 20kHz AC Voltage bandwidth
True RMS — for non-sinusoidal waveforms (EHMP520, EHMP530)
Added features — Model EHMP530 offers Temperature, Relative, Min/Max and Peak Hold
PC Interface — Optional Windows® compatible software
Includes — Built-in stand with belt clip, CAT III test leads, protective holster, 9V battery, and temperature probe (EHMP530 only)
3 Year Warranty
SPECIFICATIONS
Basic DC Volt Accuracy
0.08%
Display
5000 counts (backlit)
True RMS
MP520, MP530, ML710, ML720
AC Amp Range
0.1uA to 10A (20A for 30 sec.)
DC Amp Range
0.1uA to 10A (20A for 30 sec.)
AC Volt Range
0.01mV to 1000V
DC Volt Range
0.01mV to 1000V
Ohms Range
0.01Ω to 50MΩ
Capacitance Range
0.01nF to 9999μF
Frequency Range
0.001Hz to 125kHz
Temperature Range(MP530)
-58°F to 1832°F (-50 to 1000°C)
Continuity
yes
RS 232 Interface
yes
Software / Cable
optional for MultiPro, included for MultiLog
Catalog No.
Description
Price
EHMP510
Professional MultiMeter
232,529
EHMP520
True RMS Professional MultiMeter
263,741
EHMP530
True RMS Professional MultiMeter with temperature
279,347
EHML710
Datalogging Multimeter, 5,400 points
419,801
EHML720
Datalogging Multimeter, 43,000 points
507,195
