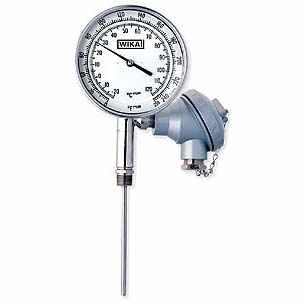

The Twin-Temp thermometer combines the convenience, simplicity, and self-powered actuation of a bimetal thermometer with the digital accuracy and data acquisition capabilities of a thermocouple or RTD electrical output. With standards traceable to the NIST, the Twin-Temp offers simplified calibration for ISO 9000 compliance and other statistical process control requirements. It is ideal in applications requiring quick and easy readability at the point of process, while still affording a means of electronic data acquisition, digital panel remote read-out. The Twin-Temp puts two temperature sensors to work at one location.
Features
Case and Bezel: 304 Stainless Steel
Case: All Angle or Back Connected
Process Connection: 1/2" NPT Standard
External Reset: Slotted hex head, fully gasketed
Window: Glass, fully gasketed
Hermetic Seal: Per ASME B40.3
Warranty: 1 Year
SPECIFICATIONS
Dial Size
3" or 5"
Accuracy
±1% of full range span
Over Range
50% over/under range (maximum exposure 500°F)
Stem
304 Stainless Steel, TIG welded at tip and case connector to prevent leakage. 1/4" diameter standard, lengths available from 2-1/2" to 48" for Thermocouple, 4" to 48" for RTD.
Thermocouple
Type K grounded junction thermocouple standard. Types J, E, T available
RTD
100-Ohm thin film Platinum DIN Curve (.00385 Ohm/Ohm/°C), 3 wire standard
