OmniScan¢â |
The Ultimate Diagnostic Tool For Conveyor-Based UV Curing |
|
|

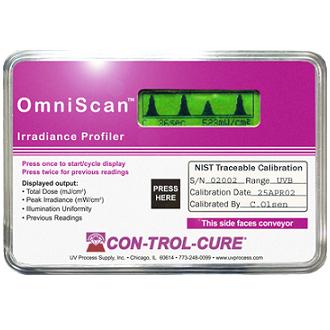

The revolutionary OmniScan is the first UV analyzer to combine dosage measurements for ensuring product quality, with system diagnostics in one simple, automated package. |
|
Run Time System Diagnostics The OmniScan's exclusive Irradiance Profiler graphically shows the absolute performance of each lamp subassembly in your system. A stored reference plot allows you to compare, on-the-spot, the current performance of the system with your standard operating parameters. There is no need to go to a computer station or to run complicated software.
|
|
Complete, easy to understand, run-time analysis of your process and equipment at the press of a single button The OmniScan maintains all of the excellent optical and signal processing capabilities that have made these instruments the industry standards in sensitivity, accuracy, ease of use and ruggedness. The OmniScan improves on these versions by adding sophisticated run-time system diagnostics.
As the OmniScan passes through the oven, it acquires the maximum irradiance at every point along the curing path. It then shows this information as a graph of irradiance versus position allowing the operator to instantly see the uniformity of the product illumination.
By recalling a stored baseline run, the OmniScan provides both quantitative and qualitative analysis of the current run. This information is provided automatically and immediately to the operator.
![](http://www.korins.com/m/uv/responsecurve.jpg)
SPECIFICATIONS:
Dose Range |
1mJ/cm2 to 20J/cm2 |
Intensity Range |
1mW/cm2 to 20W/cm2 |
Cosine Receptor |
Integrating Cavity |
Temperature Range |
10 to 60¡ÆC |
Out of Band Rejection |
104 |
Accuracy |
Typically better than 6% |
Display |
Graphic with 4 significant digits |
Information Displayed |
Dose Maximum irradiance Irradiance uniformity profile Reference profile Difference profile |
Spectral Ranges |
205nm to 345nm or 250nm to 400nm |
Dimensions
|
0.5¡± x 4.4¡± x 6.3¡± 12.7mm x 111mm x 161mm 0.75lbs / 0.34Kg |
|
|
|
| |
|
The baseline run, B, took 126 seconds. Maximum irradiance was 271mW/cm2. |
|
|
The current run, C, shows that the middle lamp has reduced irradiance but the others have maintained their output levels. |
|
The difference display shows that there were 7 days between the reference and current run. The middle bulb has lost 32% of its output energy.
| |
|
|
| |
|
|
