A012-029 UV 100 MINI CONVEYOR
    · 고객선호도 :
    · 시중가격 :
    · 판매가격 :
    · 포 인 트 :
    · 수 량 :


회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
배송은 평균 2~3일정도 예상됩니다.
                    (0)                     (0)                     (0)

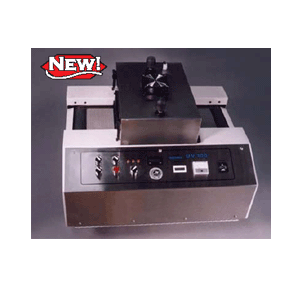

UV Process Supply offers the CON-TROL-CURE® UV 100 Mini Conveyor System
UV 100 MINI CONVEYOR


UV Process Supply offers the CON-TROL-CURE® UV 100 Mini Conveyor System, a benchtop system housed within a powder coated steel enclosure. The rugged construction and intelligent design provide excellent solvent resistance and long-term durability. The UV 100 is a component system designed for general UV bench testing and for smaller production applications including electronic components, plastic cards, CD/DVD replication, panels and signs. It is an ideal addition to the small shop utilizing UV technology.
The 8'' effective cure area has variable curing power ranging from 125 to 300W/in (400W/in available) with a quick adjustment light guard and focus to 1.25". It has a 10" in-feed and exit area for easy part handling. The UV 100 irradiator is constructed of anodized aluminum and stainless steel. The irradiator opens quickly for lamp inspection and replacement. The hard-wired lamp system will not corrode or arc. The system also utilizes a separate forced air cooling of substrate and the UV irradiator.

Versatile, compact and easy to use, the UV 100 weighs 150 lbs and measures only 32"L x 28"W x 18"H. It arrives ready to be mounted on your bench top and put to work.

Each 220V unit delivers up to 300W/in. The system features separate main and lamp power switches, panel-mounted hour meter for lamp replacement indication, and ammeter for circuit strength indication.

STANDARD FEATURES:

300W/in nominal output
Variable DC drive provides speeds from 10 to 90 FPM
Compact design is ideal for use within confined environments
10" wide UV resistant, Teflon®-coated, open mesh conveyor belt
Perfect for small applications such as circuitry, replication, labeling, etc.

OPTIONS:
Heavy-duty stand with casters or leveling pads
440V AC operation
Exhaust reducer for 6" or 8" ducting
Extra high curing chamber opening
400W/in curing power
Gallium or Iron lamp
5-30 FPM variable speed control
5-200 FPM variable speed control

TYPICAL CURING APPLICATIONS:
Electronic component curing Membrane switch circuits and overlays
Metal or plastic sheet stock Nameplates and tags
Pressure sensitive decals Injection-molded plastic parts
Circuit boards Glass and ceramics
Instrument dials Control panels

Part Number Description Units
A012-029 UV 100 MINI CONVEYOR EACH
